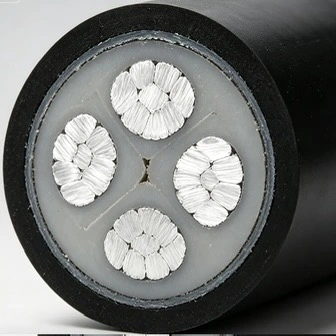

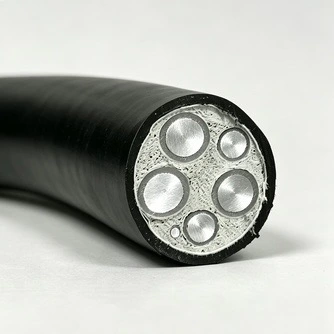

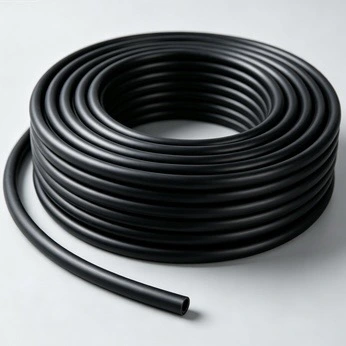

Aluminum PVC FR Low Voltage Power Cable adopts high-purity aluminum conductors together with flame-retardant PVC insulation and outer sheath. It delivers outstanding cost-performance and serves as the preferred cable for procurement-cost control.
Aluminum PVC FR Low Voltage Power Cable is manufactured strictly in accordance with national standards and IEC specifications.
The factory can provide factory acceptance certificates, third-party type-test reports and electrical-performance test reports. English-language versions are available to adapt to overseas customs clearance and project acceptance.
Complete traceability is available for every batch of cables. It helps overseas purchasers pass local project audits smoothly and avoid project shutdown risks caused by missing qualifications.
|
Nominal cross-section (mm²) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Approximate cable outer diameter (mm) |
Conductor DC resistance (Ω/km)Al |
Test voltage (kV/5min) |
Ampacity in air (A)-Al |
Ampacity in direct-buried soil(A)-Al |
|
1×1.5 |
0.7 |
1.5 |
6 |
— |
3.5 |
— |
— |
|
1×2.5 |
0.7 |
1.5 |
6 |
≤12.1 |
3.5 |
26 |
32 |
|
1×4 |
0.7 |
1.5 |
7 |
≤7.41 |
3.5 |
35 |
42 |
|
1×6 |
0.7 |
1.5 |
7 |
≤4.61 |
3.5 |
45 |
54 |
|
1×10 |
0.7 |
1.5 |
8 |
≤3.08 |
3.5 |
59 |
69 |
|
1×16 |
0.7 |
1.5 |
9 |
≤1.91 |
3.5 |
78 |
90 |
|
1×25 |
0.9 |
1.5 |
10 |
≤1.20 |
3.5 |
100 |
115 |
|
1×35 |
0.9 |
1.5 |
12 |
≤0.868 |
3.5 |
125 |
135 |
|
1×50 |
1.0 |
1.5 |
13 |
≤0.641 |
3.5 |
150 |
165 |
|
1×70 |
1.1 |
1.5 |
14 |
≤0.443 |
3.5 |
190 |
200 |
|
1×95 |
1.1 |
1.5 |
16 |
≤0.320 |
3.5 |
230 |
240 |
|
1×120 |
1.2 |
1.5 |
18 |
≤0.253 |
3.5 |
370 |
275 |
|
1×150 |
1.4 |
2.0 |
21 |
≤0.206 |
3.5 |
310 |
310 |
|
1×185 |
1.6 |
2.0 |
23 |
≤0.164 |
3.5 |
360 |
355 |
|
1×240 |
1.7 |
2.0 |
25 |
≤0.125 |
3.5 |
430 |
410 |
|
1×300 |
1.8 |
2.0 |
34 |
≤0.100 |
3.5 |
495 |
465 |
|
1×400 |
2.0 |
2.1 |
37 |
≤0.0778 |
3.5 |
590 |
535 |
|
1×500 |
2.2 |
2.2 |
41 |
≤0.0605 |
3.5 |
685 |
610 |
|
1×630 |
2.4 |
2.3 |
45 |
≤0.0469 |
3.5 |
800 |
695 |
|
1×800 |
2.6 |
2.4 |
46 |
≤0.0367 |
3.5 |
930 |
785 |
|
1×1000 |
2.8 |
2.6 |
51 |
≤0.0291 |
3.5 |
1050 |
875 |

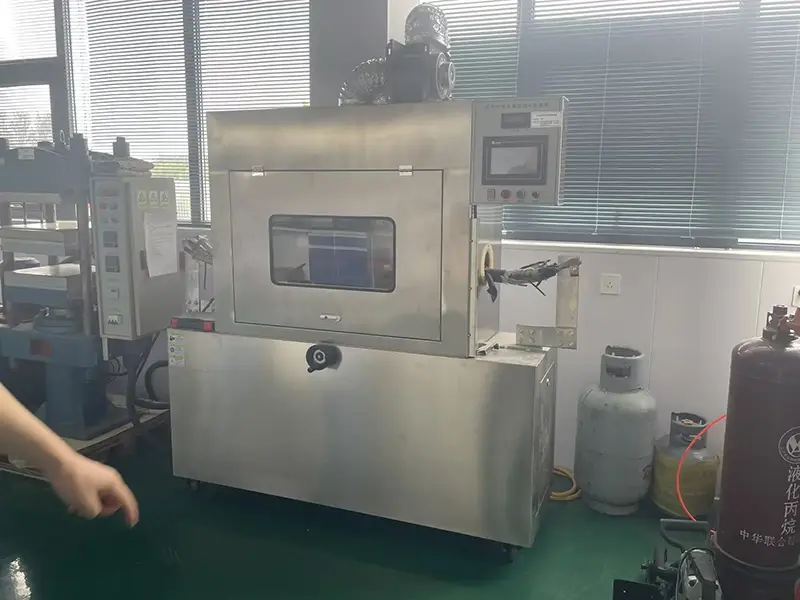

The cable adopts flame-retardant modified PVC material. It features self-extinguishing property when exposed to open flame, effectively restraining fire spread and reducing fire expansion risks.

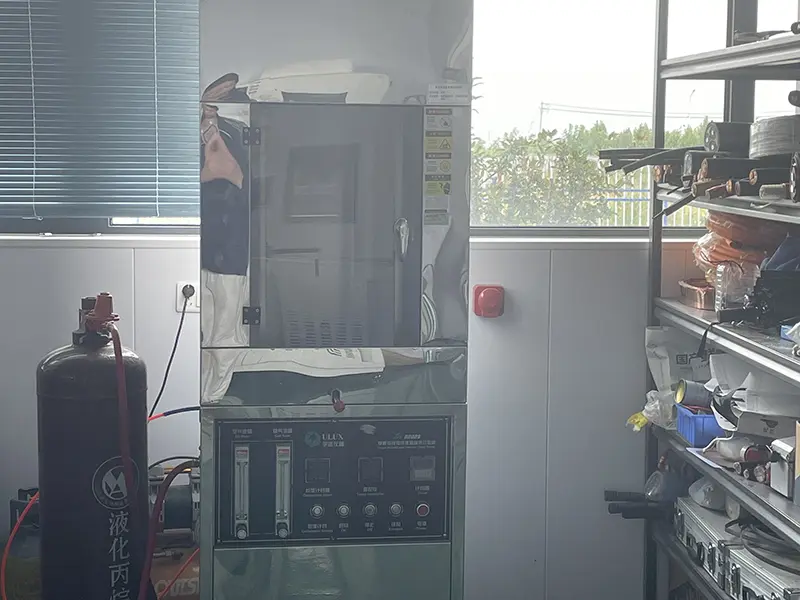

All finished cables undergo power-frequency withstand-voltage test and insulation-resistance test. The insulation layer delivers stable performance and resists breakdown and electric leakage.
Conductors can withstand short-term high temperature under short-circuit conditions, effectively lowering cable-ignition hazards.
The sheath is acid-alkali-resistant and moisture-proof. It adapts to scenarios such as cable trenches and outdoor overhead laying to guarantee safe power supply during long-term operation.
Laying ambient temperature should not be lower than 0 ℃. Keep cables warm during low-temperature construction to prevent sheath embrittlement and cracking.
The minimum bending radius of the cable shall be no less than 10 times the cable outer diameter. Avoid scratching the outer sheath with sharp objects during pulling-and-laying construction.
Suitable for fixed-laying scenarios: indoor cable trays, cable trenches, outdoor overhead installation and mild direct burial. Not applicable for long-term underwater immersion.
Aluminum conductors shall be crimped with terminals in standard construction to reduce joint contact resistance and lower overheating risks at joints.
The cable features light overall weight. Compared with copper-conductor cables, it reduces transportation and erection burdens and saves logistics and labor costs.
Aluminum PVC FR Low Voltage Power Cable adopts brand-new virgin flame-retardant PVC raw materials without recycled waste admixture.
Under standard working conditions and standardized laying, the designed service life of the cable can reach more than 20 years.
High-quality PVC insulation is anti-ageing and UV-resistant, resisting cracking and pulverization during long-term outdoor service.
The conductor offers excellent resistance to electrochemical corrosion, enabling long-term stable power supply under proper operation and maintenance, thereby reducing the cost of future line replacement.

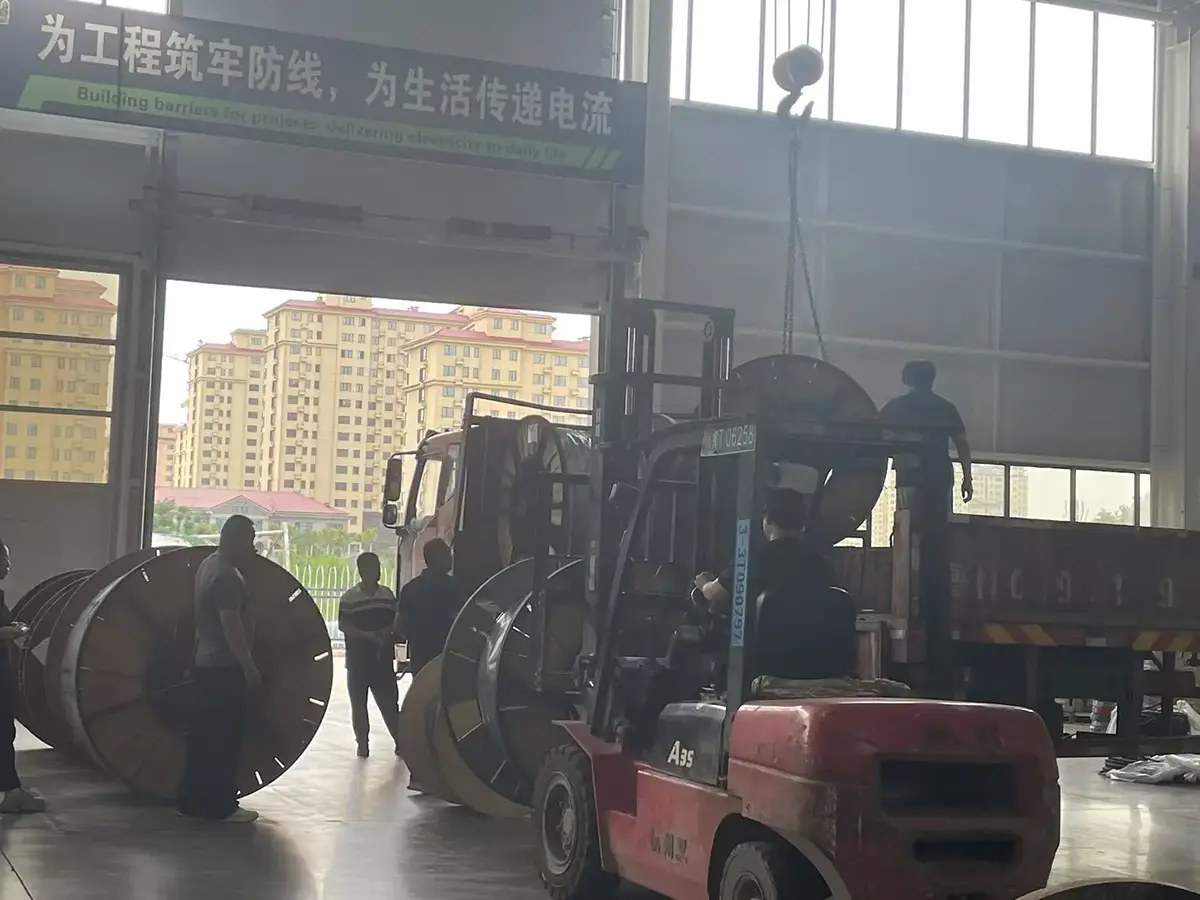

Large stocks are maintained for conventional specifications with stable order lead-time. Priority production can be arranged for urgent engineering projects.
Custom cable marking, custom outer-packaging and cut-to-length service are supported.
Re-inspection for finished products is completed before shipment to minimize outflow probability of non-conforming goods.
Packing lists and full-set English-language test documents can be provided together with orders.
Continuous technical support is available after shipment. Online replies covering cable-selection, laying-and-installation questions help smooth implementation of overseas projects.
A: Aluminum PVC FR Low Voltage Power Cable has a lower overall weight than many comparable copper-conductor constructions, which can make transportation, handling and cable installation easier. Aluminum also generally has a lower material cost than copper, which can be relevant to long cable runs and larger project quantities. The final conductor choice should consider current capacity, voltage drop, cable length, installation method and total project cost.
A: The insulation and sheath use flame-retardant PVC materials. When exposed to an external flame, the material is intended to limit flame propagation and support self-extinguishing after the flame source is removed. Finished cables can undergo power-frequency withstand-voltage and insulation-resistance testing to verify the condition of the insulation system. Short-circuit protection also depends on conductor size, circuit protection and actual installation conditions.
A: The recommended laying ambient temperature should generally not be below 0℃. If installation is required at lower temperatures, appropriate thermal insulation or other installation measures should be adopted according to the applicable procedure. The minimum bending radius is at least 10 times the cable outer diameter. Sharp objects and excessive pulling force should be avoided during installation. Depending on the construction and site conditions, the cable can be installed in cable trays, cable trenches, overhead systems or certain direct-buried applications. Long-term underwater immersion should be avoided. Aluminum-conductor joints should use compatible terminals and proper crimping methods to control contact resistance and joint temperature.
A: The supplied specification states a designed service life of more than 20 years under standardized laying and operating conditions. Virgin flame-retardant PVC materials provide resistance to normal aging and outdoor exposure. Actual service life depends on factors such as ultraviolet exposure, temperature variation, moisture, mechanical stress and installation quality. For permanent outdoor applications, the sheath construction and environmental conditions should be checked before installation.
A: The applicable specification can be manufactured according to the relevant national and IEC requirements specified for the project. Factory inspection records and electrical test reports can be provided according to the ordered specification. English-language technical documents can also be prepared for overseas project review when required. If a project requires specific certificates, third-party reports or other compliance documents, these requirements should be confirmed before production.
A: Cable marking, outer packaging and cut-to-length requirements can be arranged according to the order specification. Sample quantities can be discussed separately from regular production orders, while larger quantities can be scheduled according to the required specification and production capacity. For urgent requirements, the cable model, quantity and requested delivery date should be confirmed in advance so that the production schedule can be checked.
A: Qiancheng Cable can provide technical information covering cable specifications, installation methods, laying conditions and terminal connections. For overseas orders, product documentation, packaging requirements and specification details can be reviewed before shipment. Technical guidance can also be provided for installation-related questions based on the actual cable model and application conditions.
A: The PVC outer sheath provides resistance to moisture and exposure to weak acid or weak alkali conditions. Actual suitability depends on the concentration of the corrosive medium, exposure time, temperature and installation environment. For cable trenches or outdoor locations with persistent moisture, drainage and mechanical protection should also be considered. Where the soil has strong acid-alkali corrosion, an additional protective sleeve or conduit can be used for further protection.
