Product Model: BVVB.

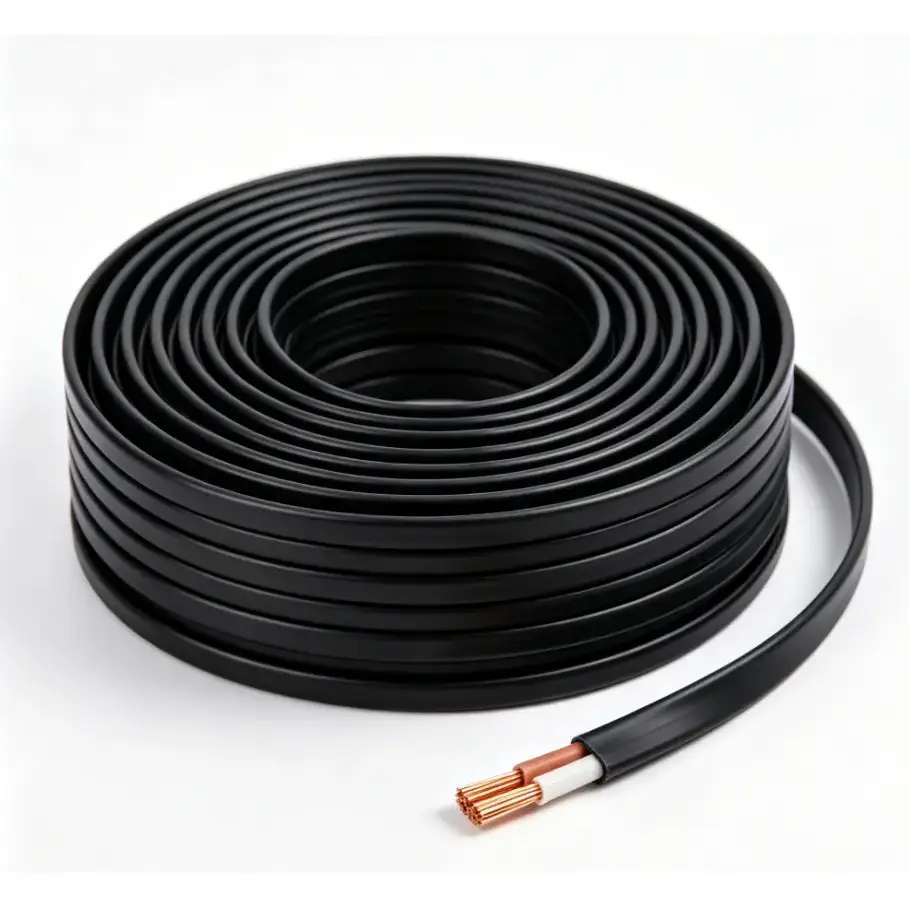

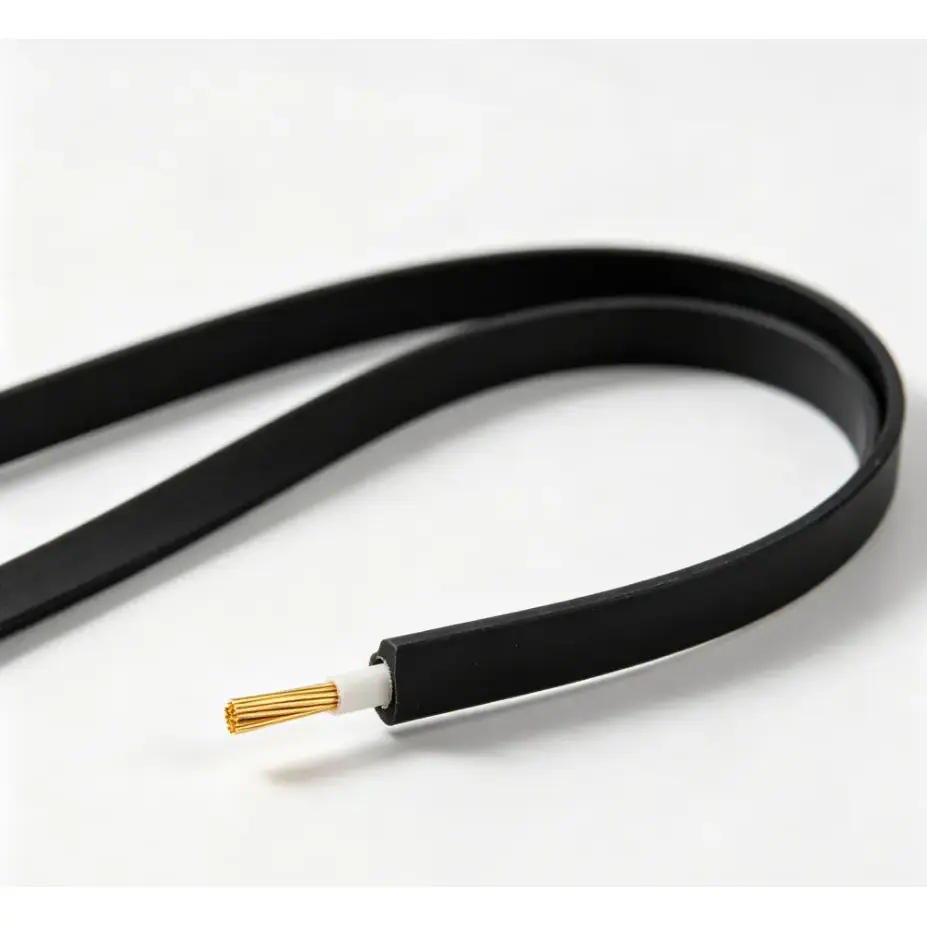

PVC Insulated Flat Copper Wire is a national-standard building wire designed for low-voltage fixed laying applications, suitable for 300/500V power distribution systems. It uses high-purity copper conductors with parallel non-stranded core construction. The conductors are covered with PVC insulation and an outer PVC protective sheath, forming a compact flat cable structure. With good electrical conductivity and double-layer protection, it is widely used for residential decoration wiring, commercial construction projects and small-equipment power connections.
|
Nominal section (mm²) |
Conductor structure strands/diameter |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
Average Outer Dimension (mm) |
Max Conductor Resistance at 20℃ (Ω/km) Cu |
|
2×0.75 |
1/0.97 |
0.6 |
0.9 |
4.4×6.9 |
24.5 |
|
2×1.0 |
1/1.12 |
0.6 |
0.9 |
4.6×7.2 |
18.1 |
|
2×1.5 |
1/1.36 |
0.7 |
0.9 |
5.0×8.1 |
12.1 |
|
2×2.5 |
1/1.75 |
0.8 |
1.0 |
5.8×9.5 |
7.41 |
|
2×4 |
1/2.21 |
0.8 |
1.0 |
6.3×10.4 |
4.61 |
|
2×4(B) |
7/0.84 |
0.8 |
1.0 |
6.6×11.0 |
4.61 |
|
2×6 |
1/2.70 |
0.8 |
1.1 |
7.0×11.6 |
3.08 |
|
2×6(B) |
7/1.03 |
0.8 |
1.1 |
7.3×12.4 |
3.08 |
|
2×10 |
7/1.35 |
1.0 |
1.2 |
8.7×15.0 |
1.83 |
|
3×0.75 |
1/0.97 |
0.6 |
0.9 |
4.4×9.3 |
24.5 |
|
3×1.0 |
1/1.12 |
0.6 |
0.9 |
4.6×9.8 |
18.1 |
|
3×1.5 |
1/1.36 |
0.7 |
0.9 |
5.0×11.1 |
12.1 |
|
3×2.5 |
1/1.75 |
0.8 |
1.0 |
5.8×13.1 |
7.41 |
|
3×4 |
1/2.21 |
0.8 |
1.0 |
6.3×14.5 |
4.61 |
|
3×4(B) |
7/0.84 |
0.8 |
1.0 |
6.6×15.4 |
4.61 |
|
3×6 |
1/2.70 |
0.8 |
1.1 |
7.0×16.2 |
3.08 |
|
3×6(B) |
7/1.03 |
0.8 |
1.1 |
7.3×17.3 |
3.08 |
|
3×10 |
7/1.35 |
1.0 |
1.2 |
8.7×21.1 |
1.83 |

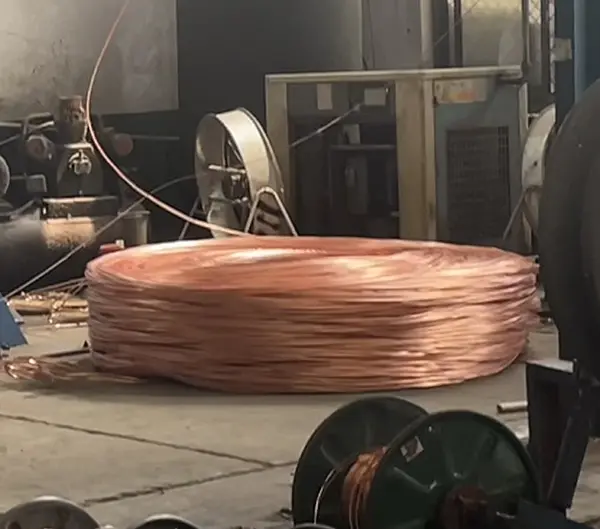

Low-end flat wires on the market may use recycled mixed copper or undersized conductors, which can increase resistance, voltage drop and heat generation under load. Our PVC Insulated Flat Copper Wire uses high-purity oxygen-free copper conductors and is manufactured according to applicable national standards, with controlled conductor cross-section and finished length. The full and uniform conductor structure supports stable conductivity and current-carrying performance when the correct specification is selected for the actual load.
Some low-cost products use recycled PVC or thinner insulation materials with lower mechanical strength, which may become brittle at low temperatures or soften under excessive heat. This product uses virgin PVC material with a double-layer insulation and sheath structure, providing resistance to bending, wear and normal temperature cycling. The construction helps protect the cable during wall-embedded and conduit installation under suitable operating conditions.
Some ordinary flat wires may have conductor offset, uneven insulation thickness or twisting caused by inconsistent production processes. The product uses high-precision one-step extrusion molding to keep the conductors centered and arranged in parallel, with controlled insulation thickness and a flat finished profile. This construction helps maintain a neat appearance during wall routing and other fixed wiring installations.
Ordinary flat wires without the required flame-retardant specification may continue to burn when exposed to an external flame source. A flame-retardant PVC formulation can be supplied for applications requiring additional fire-performance characteristics. Applicable flame-retardant versions are designed to help limit continued burning after removal of the ignition source, with the specific fire-performance grade and testing requirements confirmed according to the application and destination-market standards.
PVC Insulated Flat Copper Wire is used for whole-house lighting, socket circuits, kitchen and bathroom power connections, and other residential wiring. Its flat profile is suitable for concealed installation in walls, ceilings and floors, helping keep the wiring route compact where installation space is limited.
The flat cable can be used for fixed wiring in office buildings, shops, hotels and other commercial spaces, including lighting circuits, equipment power connections and display circuits. Its flat construction can simplify routing in areas where a compact wiring arrangement is required.
It is suitable for power connections and internal wiring of table lamps, floor lamps, small household appliances and certain small industrial-control devices. The flexible construction makes it easier to route around compact equipment and connection points.
The product can be used in suitable semi-open indoor areas such as balconies, stairwells and corridors where the installation environment is within its specified conditions. It can also be routed through cable ducts and pipes for low-voltage fixed wiring.
The compact flat construction can be useful when upgrading wiring in older buildings where available routing space is limited. It allows replacement or rearrangement of existing low-voltage circuits while keeping the wiring layout relatively compact.
The common model is BVVB, with a rated voltage of 300/500V. Production is carried out according to the applicable IEC and national standards, with different conductor sizes available according to the required application.
Relevant documentation can be provided according to the product specification and destination-market requirements, including factory inspection records, applicable CE documentation and third-party test reports when available. Required certification and testing documents should be confirmed before order placement.
The PVC insulation provides protection against normal moisture, dust and mechanical wear under suitable indoor installation conditions. It can be used in areas such as kitchens and bathrooms when the actual environment is within the product specification. The standard version is not intended for prolonged direct outdoor sunlight exposure.
Customization can be discussed for finished wire length, insulation color and printing requirements. Common specifications may be available for regular orders, while customized specifications require confirmation of production quantity, materials and lead time.
Common applications include residential interior wiring, shop and commercial decoration, small-appliance power connections, lighting circuits and fixed low-voltage wiring in corridors and similar indoor areas. The appropriate specification should be selected according to the local electrical requirements and installation conditions.
The insulation uses PVC material with flame-retardant properties according to the applicable product specification. It also provides resistance to normal aging and temperature changes during indoor service. For applications involving prolonged UV exposure or specific fire-performance requirements, the required material grade should be confirmed before production.
