Product Models: 60227IEC01(BV), BV, etc.

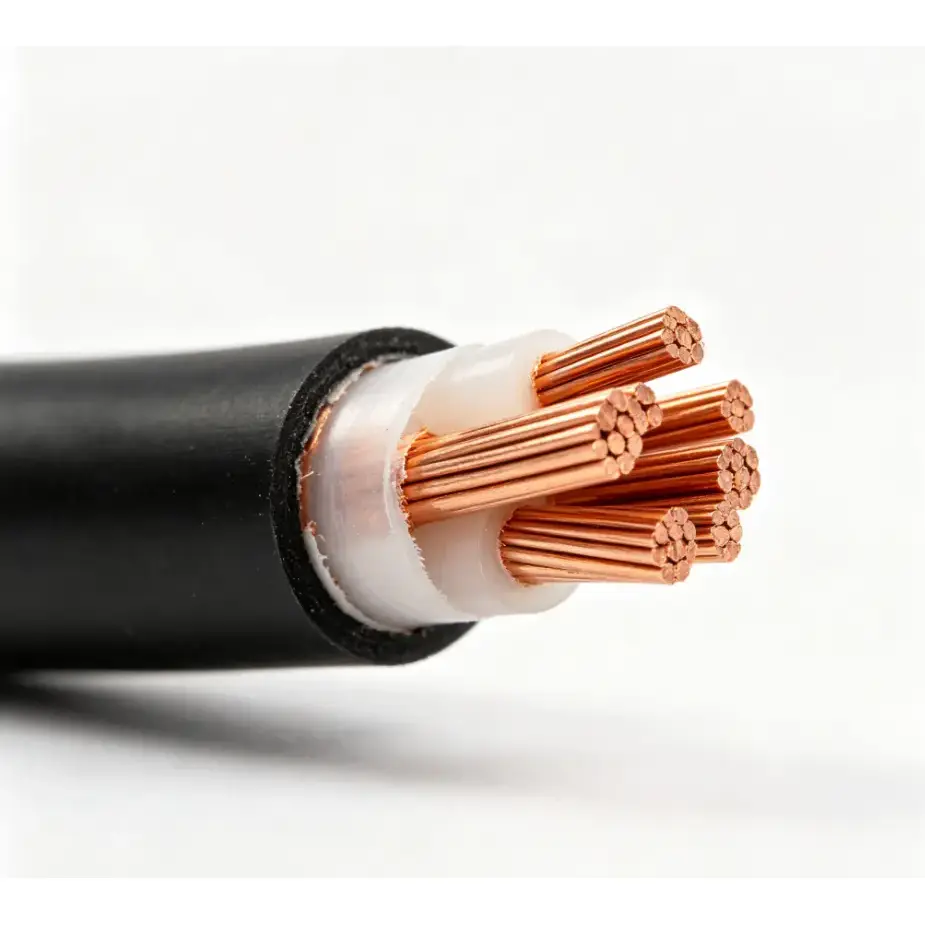

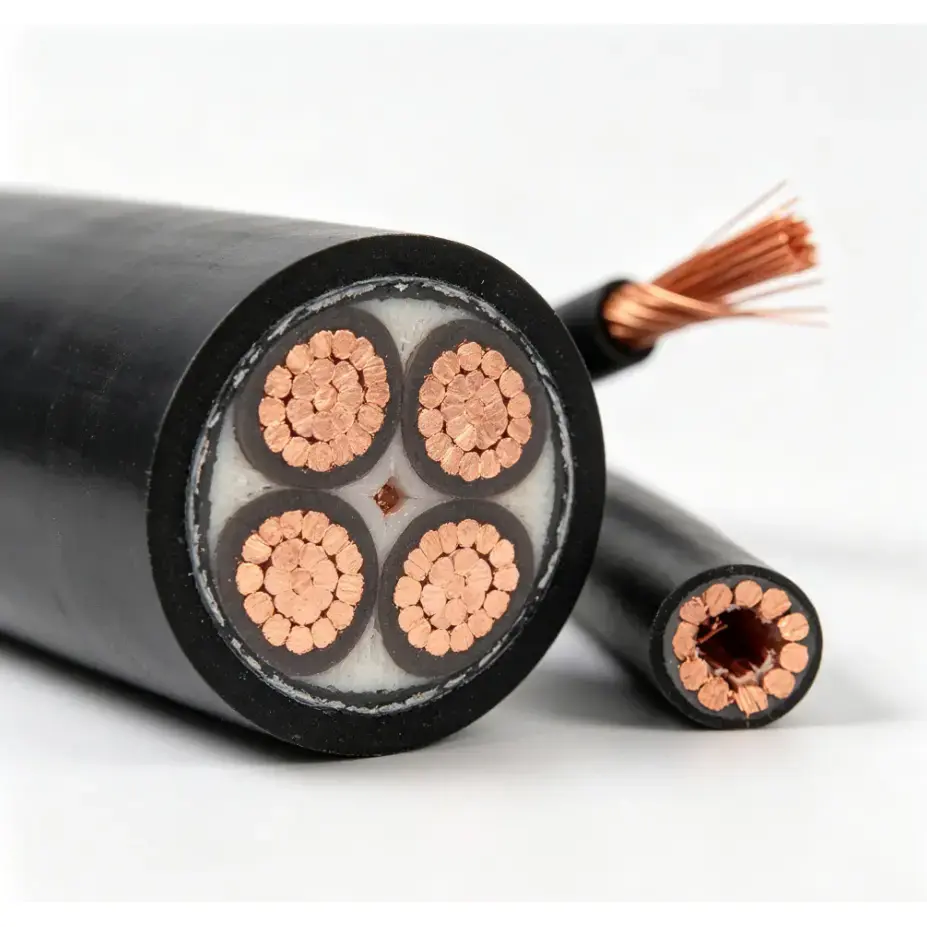

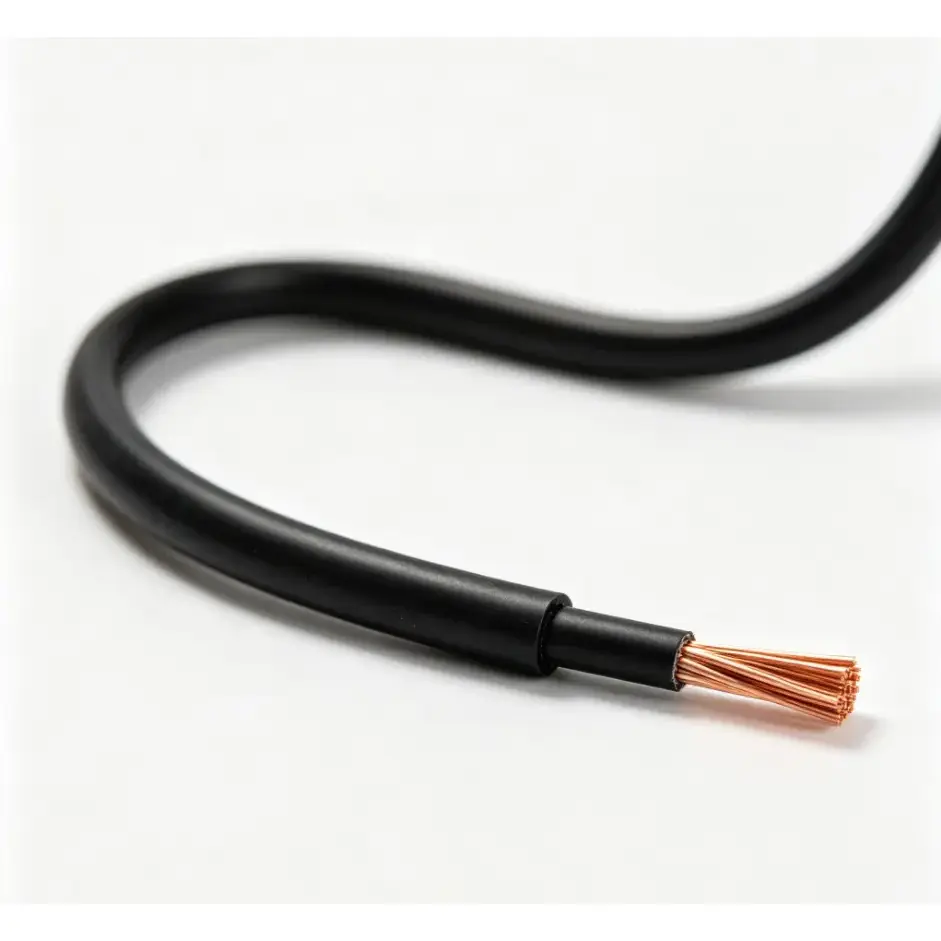

Copper PVC Cable uses high-purity copper as the conductor and polyvinyl chloride (PVC) as the insulation material. The combination of a copper conductor and PVC insulation provides a practical solution for low-voltage fixed wiring, with good electrical conductivity and insulation protection. It is commonly used in residential, industrial and municipal electrical wiring where the cable specification matches the required voltage, load and installation conditions.
|
Nominal section (mm²) |
Number/diameter of core (mm) |
Maximum outer diameter (mm) |
Maximum Conductor Resistance at 20℃ (Ω/km) Copper |
|
1.5(A)1.5(B) |
1/1.367/0.52 |
3.23.3 |
12.112.1 |
|
2.5(A)2.5(B) |
1/1.757/0.67 |
3.94.0 |
7.417.41 |
|
4(A)4(B) |
1/2.217/0.84 |
4.44.6 |
4.61 |
|
6(A)6(B) |
1/2.707/1.03 |
5.05.2 |
3.083.08 |
|
1016 |
7/1.357/1.68 |
6.47.8 |
1.831.15 |
|
2535 |
7/2.127/2.52 |
9.710.9 |
0.7270.524 |
|
5070 |
19/1.7519/2.12 |
12.814.6 |
0.3870.268 |
|
95120 |
19/2.5237/2.00 |
17.118.8 |
0.1930.153 |
|
150185 |
37/2.2237/2.52 |
20.923.3 |
0.1240.0991 |
The conductor uses high-purity copper to provide the electrical conductivity required for low-voltage power transmission. Different conductor structures are available across the listed specifications, with the corresponding conductor diameter and resistance values shown in the technical table. Selecting the appropriate cross-section according to load and installation conditions is important for controlling voltage drop and conductor heating.
PVC is used as the insulation material around the copper conductor. The insulation provides electrical separation and protection during normal service, while the finished outer diameter varies according to conductor size and construction. The applicable insulation specification should be confirmed according to the intended voltage rating and installation environment.
The technical table lists the maximum conductor resistance at 20℃ for each applicable conductor size. This provides a measurable reference for evaluating the electrical characteristics of the finished cable and helps with specification selection for different circuit loads and cable lengths.
Copper provides good electrical conductivity, making it suitable for a wide range of low-voltage wiring applications. When the conductor cross-section is correctly matched to the circuit load and cable length, the cable can provide stable power transmission under normal operating conditions.
The PVC insulation forms a continuous protective layer around the conductor and provides electrical separation during installation and operation. Its performance depends on the specified material, insulation thickness and actual service environment.
The listed range covers several common cross-sections from 1.5mm² to 185mm². This allows the specification to be selected according to circuit load, installation method, cable length and applicable electrical requirements rather than using one cable size across different projects.
The combination of copper conductivity and PVC insulation makes the cable suitable for various fixed low-voltage wiring applications. Depending on the selected model, it can be used in residential, commercial, industrial and municipal electrical systems.

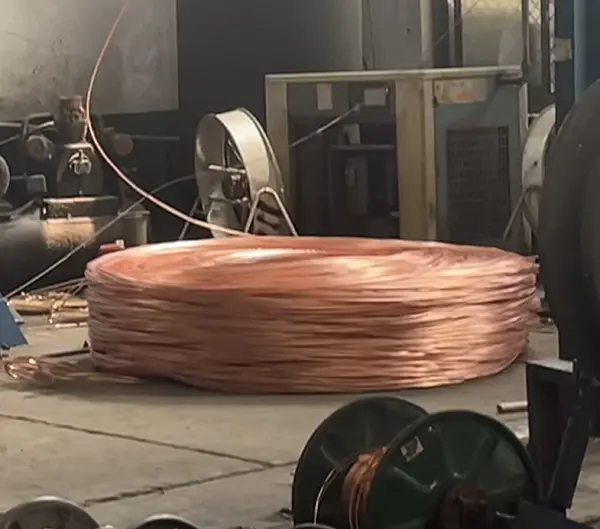

Qiancheng controls key production parameters from conductor processing through insulation extrusion and finished-cable inspection. The relevant checks can include conductor dimensions, conductor resistance, insulation condition, finished outer diameter and electrical performance according to the applicable product specification.
For engineering and export orders, technical parameters, factory inspection records and other applicable product documentation can be provided according to the specification and project requirements. This gives purchasers a clearer basis for checking the supplied cable against the agreed technical requirements.
Common applications include home decoration wiring, lighting circuits, socket connections and other fixed low-voltage electrical connections. The selected conductor size should be matched to the circuit load and local installation requirements.

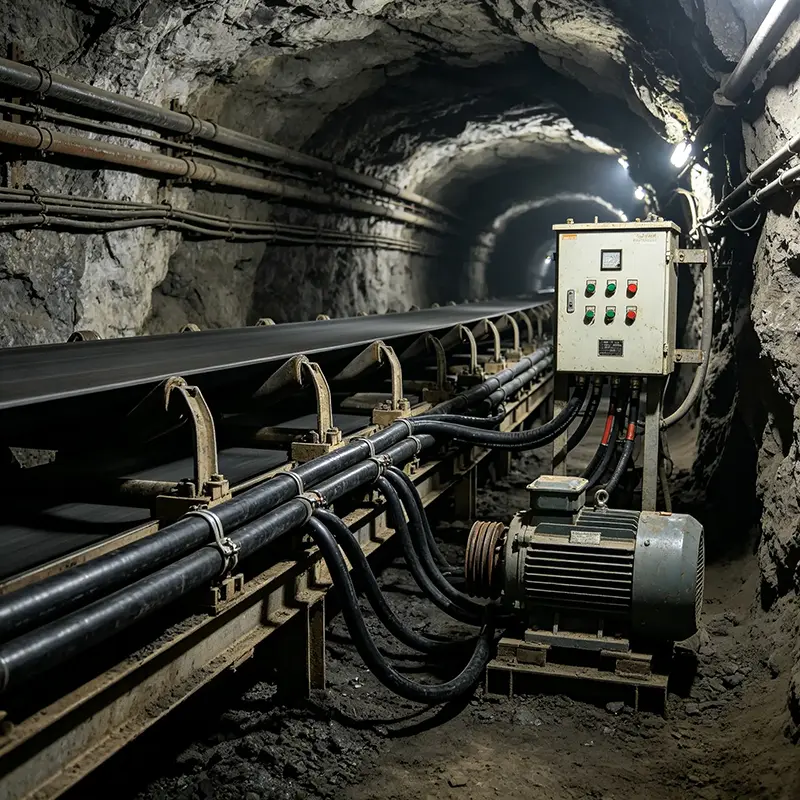

The cable can be used for fixed power connections in factories, workshops and other industrial facilities where the voltage, load and environmental conditions are within the applicable specification.
It can also be considered for suitable municipal electrical installations and supporting power wiring. Project requirements such as cable routing, ambient conditions, required documentation and local electrical standards should be confirmed before specification selection.
The cable is suitable for fixed connections to electrical equipment and distribution systems where the selected conductor size and voltage rating meet the equipment requirements.
Different circuits require different conductor cross-sections. The available specifications provide a range of conductor sizes so that the cable can be selected according to operating current, cable length, voltage drop and installation conditions.
A consistent PVC insulation layer helps maintain electrical separation between the conductor and surrounding materials. Correct installation, routing and protection remain important for maintaining insulation performance throughout service.
For engineering projects requiring larger quantities, consistent conductor dimensions, resistance values and finished-cable specifications are important for installation planning. Production inspection and agreed technical specifications provide a reference for batch acceptance.
Export and engineering projects may require different technical documents, test records or product markings. These requirements can be confirmed before production so that the supplied cable and accompanying documentation correspond to the project specification.
Common models include 60227IEC01(BV) and BV. Other applicable specifications can be discussed according to the required conductor size, voltage rating and application.
The conductor uses high-purity copper, while PVC is used as the insulation material. The conductor structure, cross-section and resistance values vary according to the selected specification and are listed in the technical parameter table.
Copper PVC Cable is suitable for residential wiring, industrial power distribution, municipal electrical projects and fixed electrical equipment connections where the applicable voltage, load and environmental requirements are met.
The listed specifications cover conductor cross-sections from 1.5mm² to 185mm², with corresponding conductor structures, maximum outer diameters and maximum conductor resistance values shown in the table above. The required size should be selected according to the actual electrical load and installation conditions.
Customization can be discussed for applicable conductor sizes, finished lengths, printing and packaging requirements. Production arrangements depend on the required specification, order quantity and technical requirements.
Technical parameters, factory inspection records and other applicable documents can be discussed according to the product specification and project requirements. Samples can also be arranged when the required specification and quantity are confirmed.
