Product Models: 60227IEC53(RVV), RVV.

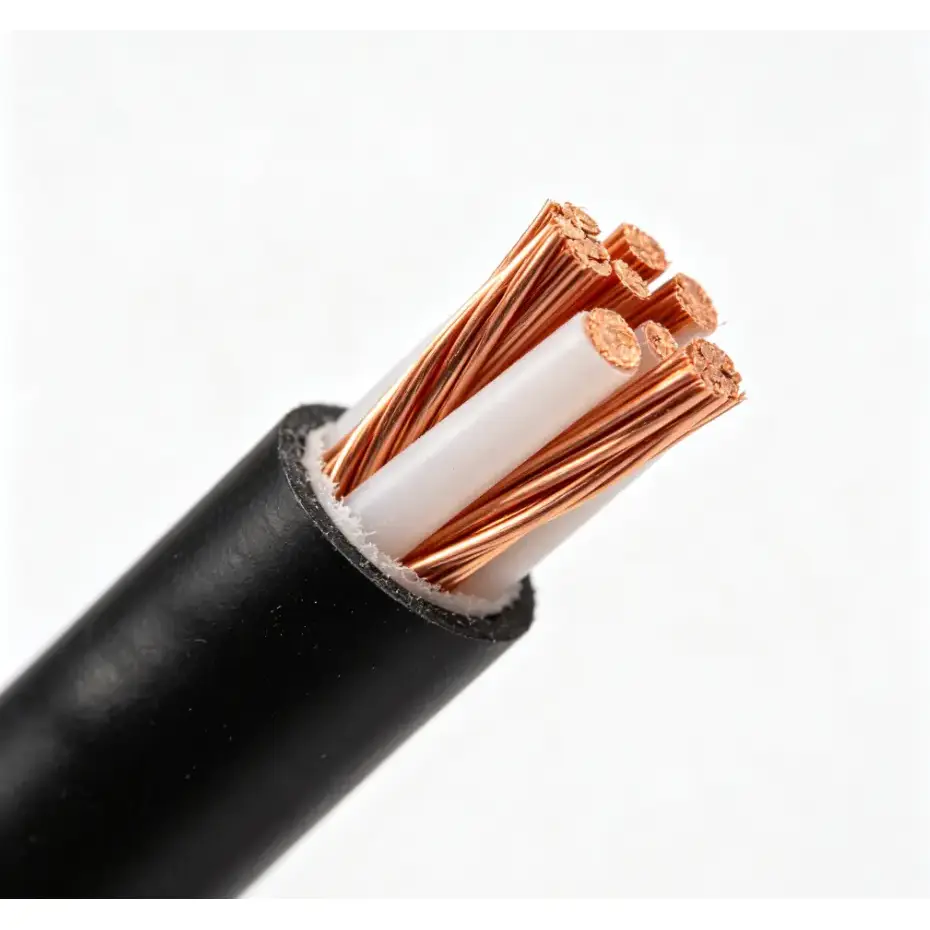

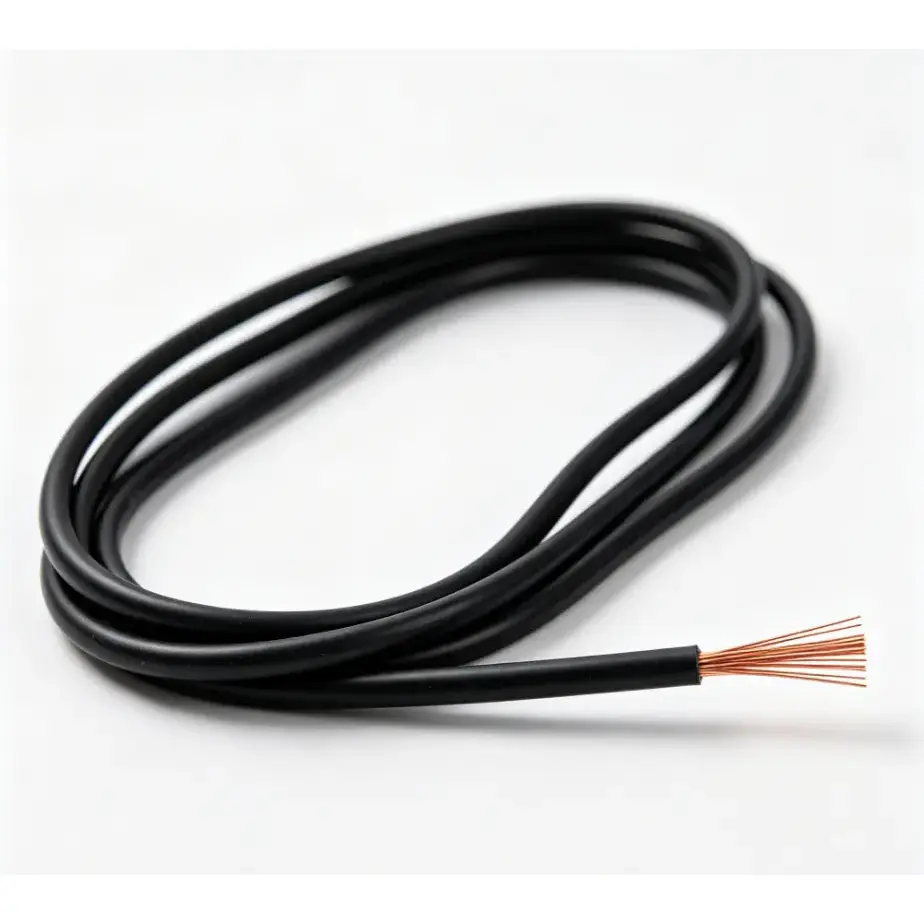

PVC General Flexible Cord is a basic low-voltage wiring product for civil and commercial applications. It uses multi-strand fine oxygen-free copper conductors with PVC insulation, providing a soft construction and good flexibility for indoor wiring. With a rated voltage of 300/500V and a temperature rating of 70℃, the product complies with applicable national standards and is suitable for various indoor low-voltage electrical connection applications.
|
Specification |
Insulation Thickness(mm) |
Sheath Thickness(mm) |
Approximate Outer Diameter(mm) |
Minimum Insulation Resistance at 70℃（MΩ·km） |
|
2×0.75 |
0.6 |
0.8 |
7.2 |
0.011 |
|
2×0.75* |
0.6 |
0.8 |
4.3×7.0 |
0.011 |
|
2×1.0 |
0.6 |
0.8 |
7.5 |
0.010 |
|
2×1.0* |
0.6 |
0.8 |
4.5×7.3 |
0.010 |
|
2×1.5 |
0.7 |
0.8 |
8.4 |
0.010 |
|
2×2.5 |
0.8 |
1.0 |
10.2 |
0.009 |
|
3×0.75 |
0.6 |
0.8 |
7.6 |
0.011 |
|
3×1.0 |
0.6 |
0.8 |
7.9 |
0.010 |
|
3×1.5 |
0.7 |
0.9 |
9.2 |
0.010 |
|
3×2.5 |
0.8 |
1.0 |
11.0 |
0.009 |
|
4×0.75 |
0.6 |
0.8 |
8.2 |
0.011 |
|
4×1.0 |
0.6 |
0.9 |
8.9 |
0.010 |
|
4×1.5 |
0.7 |
1.0 |
10.2 |
0.010 |
|
4×2.5 |
0.8 |
1.1 |
12.0 |
0.009 |
|
5×0.75 |
0.6 |
0.9 |
9.2 |
0.011 |
|
5×1.0 |
0.6 |
0.9 |
9.6 |
0.010 |
|
5×1.5 |
0.7 |
1.1 |
11.3 |
0.010 |
|
5×2.5 |
0.8 |
1.2 |
13.3 |
0.009 |
PVC General Flexible Cord uses a fine-stranded copper conductor that allows the wire to bend, twist and coil more easily during installation. It can be routed through conduits, narrow ceiling spaces and compact equipment interiors where rigid conductors are less convenient to handle.
The PVC insulation is applied through controlled extrusion to maintain the specified thickness and surface quality. A properly formed insulation layer provides electrical separation between the conductor and external contact. Flame-retardant insulation can be supplied when required by the product specification.
Copper conductors provide good electrical conductivity with controlled conductor resistance. Selecting the appropriate cross-sectional area according to circuit load and voltage requirements helps control voltage drop and heat generation during normal operation.
The multi-stranded construction accommodates normal bending, twisting and repositioning during installation and use. It is suitable for indoor equipment wiring, lighting connections, appliance connections and other applications where some degree of flexibility is required.
Common conductor sizes and voltage ratings are available for household, equipment and light-duty commercial electrical connections. The required size can be selected according to the circuit load, installation method and applicable electrical requirements.
Conductor dimensions are checked during production to maintain the specified cross-section. Finished roll lengths can be arranged according to the agreed order requirements, and third-party inspection can be supported when required.
For projects requiring additional flame-retardant performance, PVC General Flexible Cord can be supplied with a corresponding flame-retardant insulation specification. The required grade and applicable test requirements can be confirmed before production.
Multiple fine copper strands make the wire easier to route around equipment, lighting fixtures and other connections that require bending during installation. The actual flexibility depends on the conductor structure, insulation and operating conditions.
Available sizes cover common requirements for household wiring, lighting, equipment connections and light-duty low-voltage applications. Conductor size and voltage rating can be selected according to the actual electrical load rather than applying the same specification across different circuits.

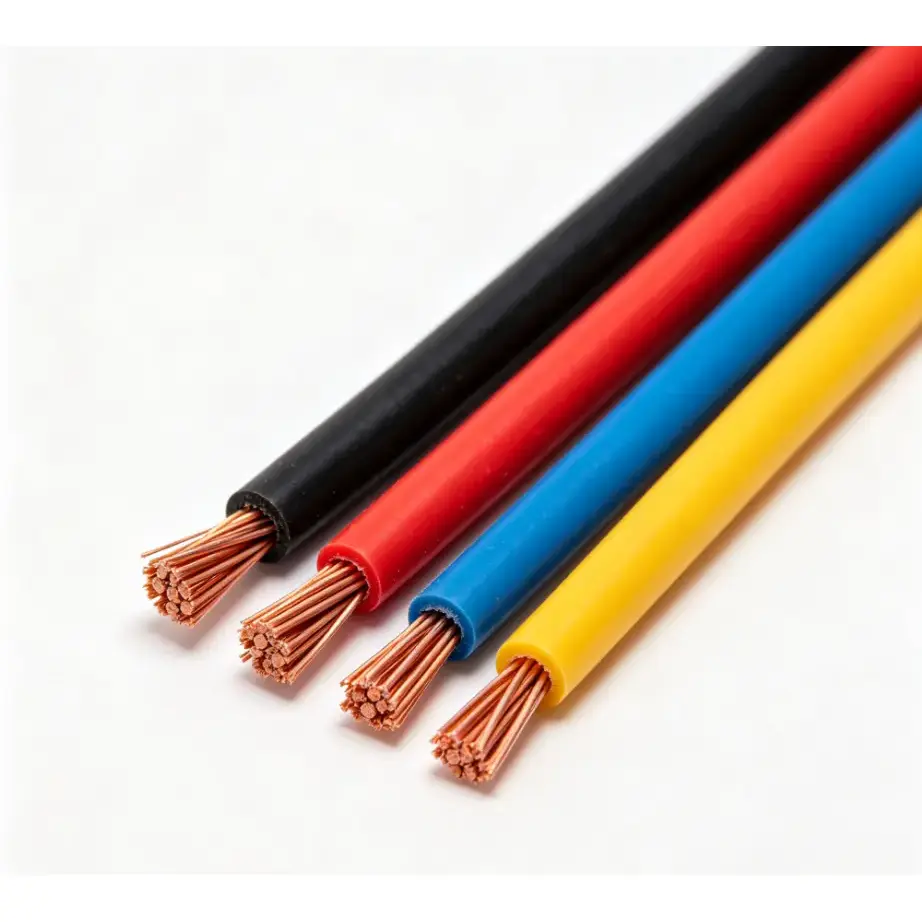

Different insulation colors can be supplied to help distinguish conductors during installation, inspection and maintenance. Color requirements can be confirmed according to the wiring system and destination-market specifications.
Our PVC General Flexible Cord complies with applicable IEC standards, and CE certification is available for relevant specifications. Test reports and factory inspection documents can be provided for customs clearance and import documentation. The applicable requirements can be confirmed according to the destination market and product specification.
The product is rated at 300/500V, with a long-term operating temperature of 70℃ under the specified conditions. It is not intended for high-temperature applications. Where higher heat resistance is required, other cable constructions can be considered according to the operating environment.

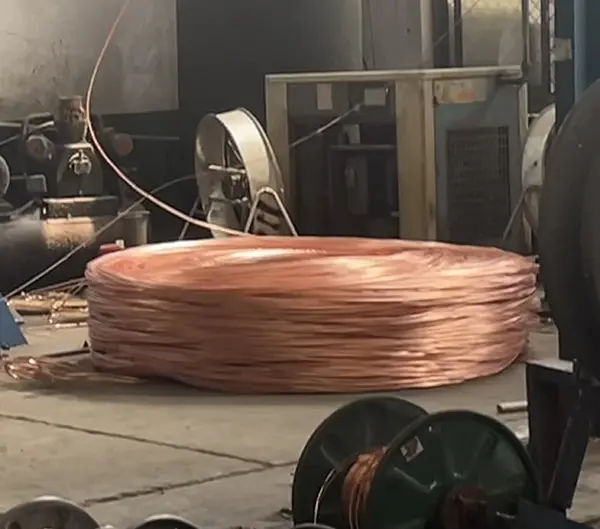

The conductor uses high-purity oxygen-free copper without recycled copper being intentionally mixed into the conductor material. Conductor dimensions and finished roll length are controlled during production. Third-party inspection of size and length can also be arranged when required.
It can be used for household wiring, lighting connections, small home appliances, office equipment and other indoor low-voltage electrical connections. It is mainly intended for indoor applications and should not be selected for long-term outdoor exposure unless the complete product specification is suitable for those conditions.
Flame-retardant PVC options are available according to the required specification. The PVC insulation can be supplied using new PVC compound, with material selection and formulation depending on the product requirements. Odor characteristics can vary with the material formulation and processing conditions.
Custom wire colors and roll lengths can be arranged according to the order requirements. Common specifications may be available from regular stock, while larger quantities can be scheduled for production based on the required specification and order volume.
