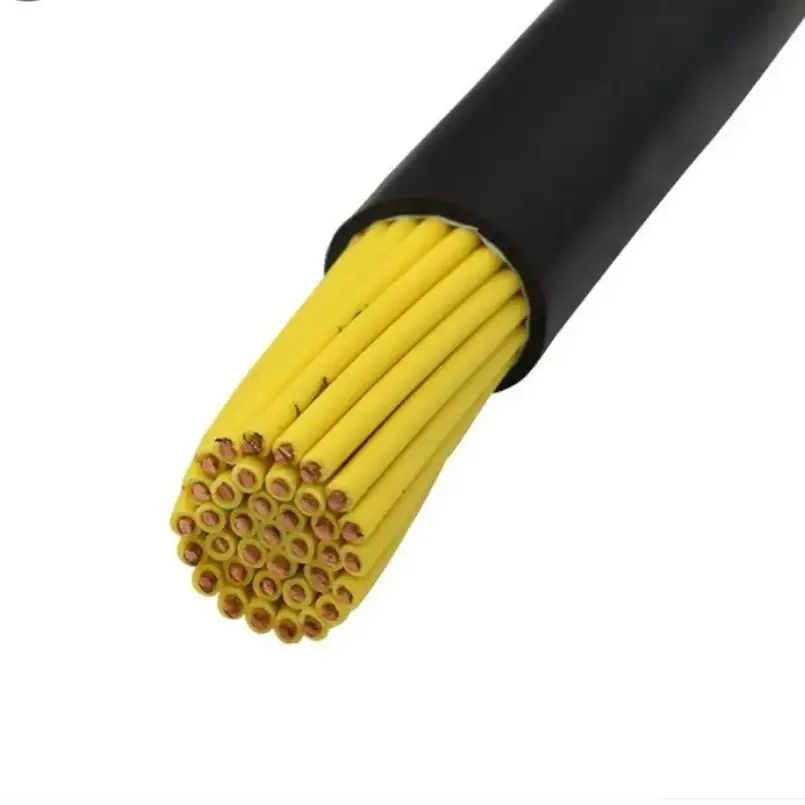

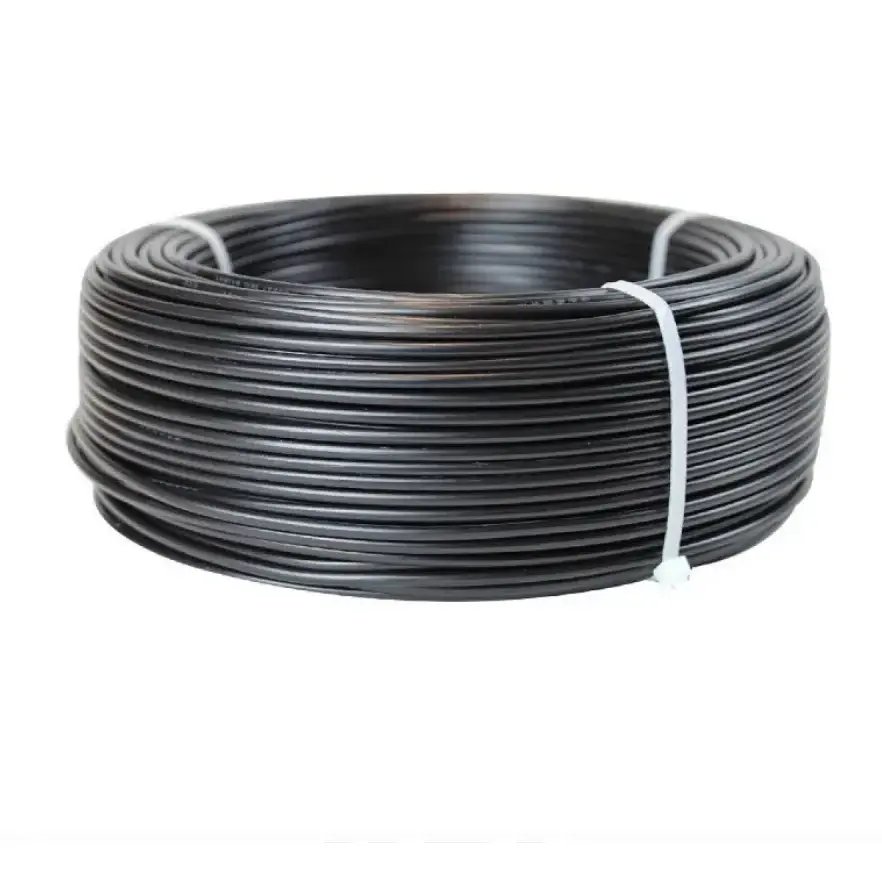

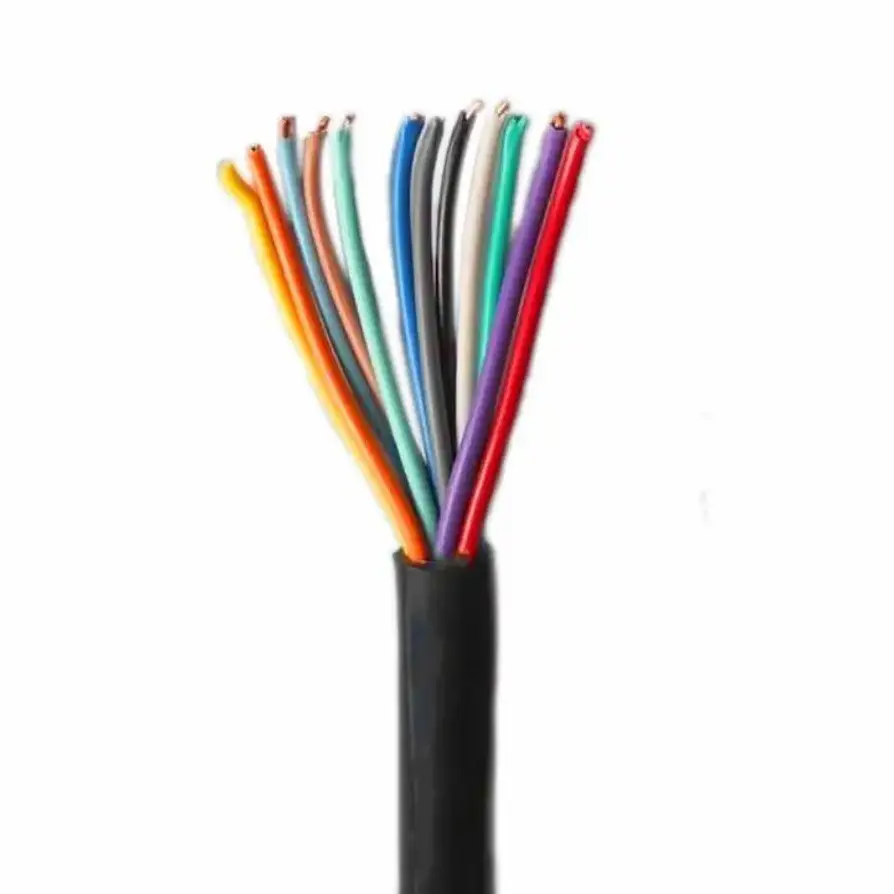

Copper PVC Flame Retardant Flexible Control Cable

Product Models: N-KVVR(NH-KVVR), N-KVVRP(NH-KVVRP).

Copper PVC Flame Retardant Flexible Control Cable combines stranded copper conductors with PVC insulation and an outer sheath to provide a flexible solution for control and signal wiring. Its flame-retardant cable construction is intended to restrict flame propagation, while the flexible conductor arrangement allows the cable to be routed more easily around control cabinets, equipment terminals and compact wiring spaces.

This cable is commonly specified for fire-protection control circuits, industrial automation, power equipment, mechanical and electrical systems, and metallurgical machinery. The appropriate specification depends on the required core configuration, conductor size, installation conditions and the flame-retardant requirements defined for the application.

Product Specification Dimensions and Technical Parameter Table

Construction and Flame-Retardant Performance

Multi-Strand Flexible Copper Conductor

The cable uses a multi-strand copper conductor construction rather than a solid conductor. The smaller individual conductor strands provide greater flexibility, which is useful when routing control cables through cabinets, conduits, equipment enclosures and other locations where installation space is limited.

PVC Insulation and Sheath

PVC is used for the insulation and outer protective layer. The insulation thickness varies according to the nominal conductor cross-section, with the corresponding values listed in the technical table. The selected insulation structure provides electrical separation and protection for control and monitoring circuits during normal service.

Flame-Retardant Cable Construction

The flame-retardant PVC material is intended to reduce flame propagation along the cable when exposed to an ignition source. Flame-retardant performance should be evaluated according to the applicable cable specification and testing requirements rather than treated as the same as fire-resistance performance.

Why the Flexible Construction Matters in Control Wiring

Copper PVC Flame Retardant Flexible Control Cable combines a multi-strand conductor structure with PVC insulation and sheath, making it suitable for control wiring where routing flexibility is important. The construction can simplify cable arrangement inside control cabinets and around equipment components compared with less flexible cable designs.

For projects involving multiple control circuits, the available core configurations allow the cable to be selected according to the number of signals or control functions required. The conductor cross-section should be determined from the electrical requirements of the circuit rather than from core quantity alone.

For installations with fire-safety requirements, the flame-retardant characteristic can be considered together with the installation environment, cable grouping, routing method and the applicable project standard. These factors should be confirmed before final specification selection.

Application Scenarios

Fire-Protection Systems

Used for control and signal circuits in fire-protection control cabinets, fire-alarm linkage equipment and related mechanical systems such as smoke-exhaust equipment.

Power and Energy Equipment

Suitable for control cabinets, generator-related control circuits, power distribution room equipment and other low-voltage control applications where flexible wiring is required.

Metallurgical and Industrial Production

Can be used in automatic-control systems for production lines, equipment control cabinets and signal circuits in industrial environments. Environmental temperature and exposure to oil, moisture or chemicals should be considered during selection.

Building Mechanical and Electrical Systems

Applicable to control wiring for central air-conditioning equipment, building mechanical and electrical systems, underground equipment rooms and other building-service installations.

General Industrial Automation

Used in control cabinets, automated production equipment, mechanical equipment and other industrial systems where multiple control or monitoring signals need to be routed through confined installation spaces.

Quality and Specification Verification

For a control cable, quality verification should focus on measurable construction and electrical parameters. Conductor cross-section, maximum single-wire diameter, PVC insulation thickness and DC conductor resistance can be checked against the agreed specification before production and shipment.

For bulk engineering orders, the model, core quantity, conductor cross-section, cable length and applicable flame-retardant requirements should be confirmed in advance. Technical documentation and inspection records can be matched with the ordered specification where required by the project.

Specification Selection Guide

When selecting the cable for an automatic-control project, several parameters should be considered together:

1. Conductor cross-section: Select according to the electrical load and control-circuit requirements.

2. Core quantity: Match the number of cores with the required control and monitoring functions, with additional cores considered where the project design requires them.

3. Installation method: Confirm whether the cable will be routed inside a control cabinet, through conduit, on a cable tray or directly to equipment.

4. Flame-retardant requirements: Confirm the required flame-retardant class or applicable testing standard for the project.

5. Environmental conditions: Consider ambient temperature, moisture, oil, chemicals, mechanical movement and available bending space.

6. Delivery requirements: Confirm cable length, packaging, labeling, documentation and any inspection requirements before bulk production.

FAQ

1. Does this Copper PVC Flame Retardant Flexible Control Cable have flame-retardant performance?

Yes. The cable uses flame-retardant PVC insulation and sheath materials designed to help limit flame propagation. The exact flame-retardant performance should be confirmed according to the specified cable construction and applicable test requirements.

2. Why is the cable suitable for wiring in narrow control cabinets?

The multi-strand conductor structure provides greater flexibility than a solid conductor of the same nominal cross-section. This can make routing and termination easier where the available installation space is limited.

3. What cross-sections and core quantities are available?

The listed cross-sections are 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm², 4mm² and 6mm². Recommended core quantities include 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52 and 61 cores. Custom core quantities can be discussed according to project requirements.

4. Can the cable be customized for special core quantities or lengths?

Yes. Custom core quantities and cable lengths can be discussed according to the project specification. The conductor cross-section, installation conditions, flame-retardant requirements and required documentation should be confirmed before production.

5. Where is this type of cable commonly used?

Typical applications include fire-protection control cabinets, power and energy equipment, metallurgical production lines, building mechanical and electrical systems, automated production equipment and industrial control cabinets.

6. What information is needed for a quotation?

Please provide the required model, conductor cross-section, core quantity, cable length, installation environment and applicable flame-retardant requirements. Project drawings or technical specifications can also be provided when available so that the cable construction can be checked before quotation and production.
