Product Models: WDZ-KYJY, WDZ-KYJYP, WDZ-KYJY23, etc.

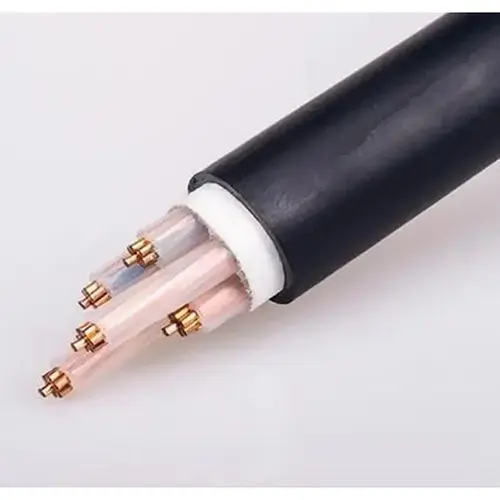

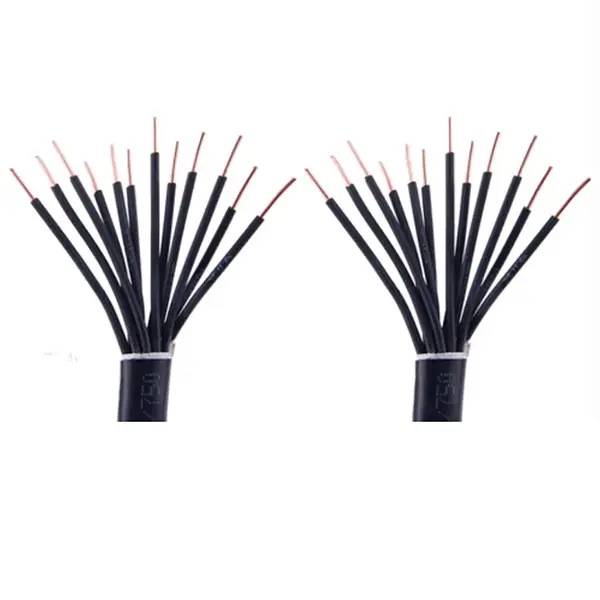

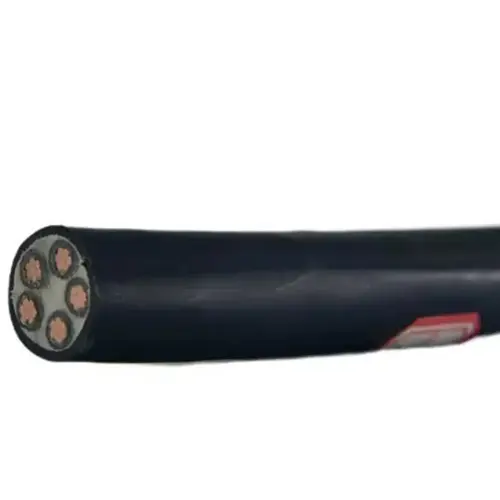

XLPE LSZH Flame Retardant Copper Control Cable takes high-purity oxygen-free copper as conductor, cross-linked polyethylene (XLPE) as insulation layer, and is equipped with low-smoke zero-halogen flame-retardant environment-friendly outer sheath as a special control cable. Featuring low-smoke, zero-halogen and flame-retardant safety performance, this dedicated control cable is widely applied in low-voltage signal and control circuits for densely-populated sites with high fire-protection requirements. Compared with ordinary PVC cables, it generates little non-toxic smoke in case of fire, making it the preferred wire for high-end buildings, new-energy and fire-protection projects.
|
Parameter Category |
Parameter Item |
Technical Index |
Supplementary Note |
|
Implementation Standard |
National Standard |
GB/T 9330, GB/T 19666 |
Suitable for domestic engineering and foreign trade export |
|
Electrical Basics |
Rated Voltage |
450/750V |
For low-voltage control and signal circuits |
|
Conductor |
Material |
99.99% high-purity oxygen-free copper |
Class 1 solid rigid conductor, Class 5 stranded flexible conductor |
|
Insulation Layer |
Material |
XLPE cross-linked polyethylene |
Long-term operating temperature: 90℃; short-term overload temperature: 130℃ |
|
Outer Sheath |
Material |
Low-smoke zero-halogen flame-retardant polyolefin |
Chlorine-free and halogen-free, low-toxicity and low-smoke |
|
Flame Retardant Grade |
Classification |
WDZ (A, B, C) |
Meet the bundled flame-retardant (A, B, C) requirements specified in GB/T 19666 |
|
Voltage Withstand Test |
Finished-product Withstand Voltage |
3000V/5min no breakdown |
Full inspection before delivery to eliminate insulation defects |
|
Operating Temperature |
Maximum long-term operating temperature |
90℃ |
Superior to 70℃ PVC cables compared with H-90 type PVC cables |
|
Laying Temperature |
Minimum laying ambient temperature |
≥0℃ |
Custom cold-resistant version allows direct laying at -30℃ |
|
Low-Smoke Zero-Halogen |
Smoke Density |
Light transmittance ≥60% |
Good smoke light transmittance in fire scenarios to facilitate escape |
|
|
Acidity and Conductivity |
--pH value ≥4.3--conductivity ≤10 |
-- |
|
|
Halogen Acid Gas Emission |
HCL and HBr ≤0.5%;HF content ≤0.1% |
Halogen-free, no corrosive toxic smoke |
|
|
Halogen Content |
Cl, F, Br, I all less than 0.1mg/g |
-- |
|
|
Toxicity Index TOX |
≤5 |
Low-toxicity combustion smoke |
1. Wiring for building automatic control and fire-protection linkage control systems in densely-populated buildings including commercial complexes, office buildings, hospitals and schools.
2. Low-voltage control and signal circuits for photovoltaic power stations, energy-storage power stations and charging piles.
3. Closed key fire-protection areas such as subways, tunnels, underground utility tunnels and civil air-defense projects.
4. Signal control cables for large-scale industrial plants, automatic production lines and precision instrument control cabinets.
5. Control circuits for public-area lighting, ventilation and elevators in hotels, shopping malls, airports and stations.
6. Electric control cables supporting overseas green buildings and exported mechanical and electrical equipment.
1. Solve casualties caused by dense toxic smoke in fire accidents: Ordinary cables release toxic halogen smoke when burning. XLPE LSZH Flame Retardant Copper Control Cable generates little non-toxic smoke during combustion and reduces casualty risks in fire emergencies.
2. Solve rapid cable aging and faults under high-temperature conditions: Traditional PVC cables have poor high-temperature resistance and tend to age and leak electricity in machine rooms and energy-storage zones. XLPE insulation enables stable long-term operation under high-temperature environments.
3. Solve non-compliance of environmental-protection wiring in confined spaces: Public buildings and tunnels impose strict environmental-protection requirements for cables. This product contains no heavy metals or halides and satisfies green construction standards.
1. Strict brand quality control for high safety and reliability: XLPE LSZH Flame Retardant Copper Control Cable by China Qiancheng is produced with full-process standardized procedures. Each batch is sampled for inspection to guarantee factory qualification, delivering low failure rate for long-term engineering application.
2. Versatile performance for multiple-scenario application: Integrating high temperature resistance, halogen-free, low-smoke, flame retardancy, corrosion resistance and low loss, one single cable can cover fire protection, new energy, public construction and other scenarios.
3. Convenient construction to cut overall cost: Flexible and easy-to-strip for high laying efficiency; long service life reduces later-stage replacement and maintenance cost of circuits.
4. Factory direct supply with flexible procurement options: Self-owned factory with sufficient stock. Bulk orders are acceptable, and customized versions including shielded, armored and fire-resistant upgraded types are available. Free samples are provided.
5. Compatible with domestic and overseas markets: Compliant with national standards and IEC international standards, applicable for domestic municipal and real-estate projects as well as direct export worldwide.

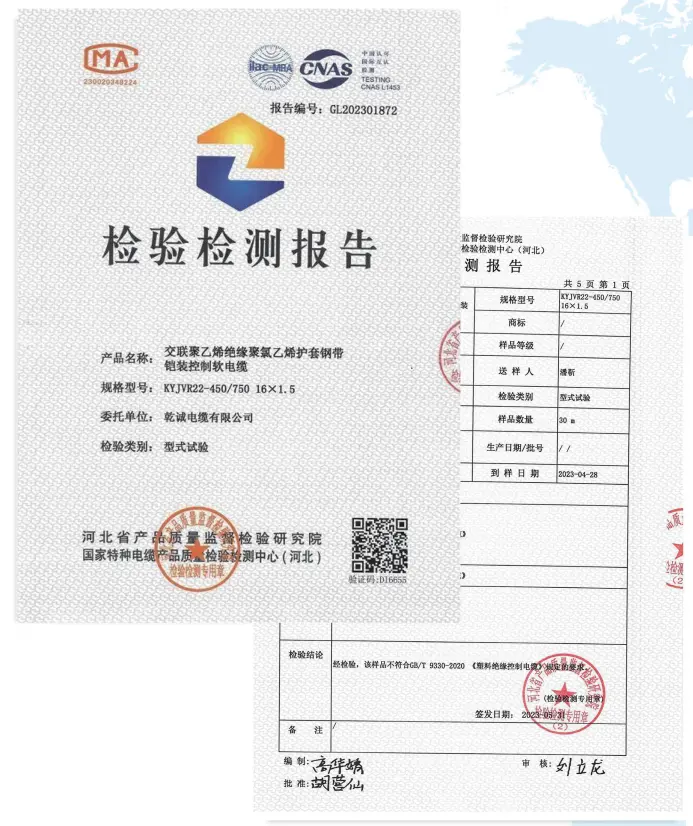

China Qiancheng copper core XLPE insulated low-smoke halogen-free flame retardant control cable meets GB/T 9330-2020 national standard and IEC 60502-1 international standard, complete test reports are available for export to all countries, meeting the requirements of overseas green buildings and fire protection projects.
The long-term maximum operating temperature of this cable with XLPE insulation is 90℃, and it can withstand short-term overload of 130℃, much better than ordinary PVC control cables, suitable for stable use in high-temperature working conditions such as energy storage stations and computer rooms.
The copper core XLPE insulated low-smoke halogen-free flame retardant control cable has smoke density SDR ≤ 120, halogen acid release ≤ 0.5%, toxicity index TOX ≤ 5, it produces little non-toxic smoke when burning, applicable to crowded projects like hospitals, subways and schools.
Our copper core XLPE insulated low-smoke halogen-free flame retardant control cable can be customized into shielded type, steel tape armored type, and upgraded fire-resistant model WDZN-KYJY; core numbers and cross sections can also be adjusted as required.
Ordinary PVC cables are prone to aging at high temperature and release toxic halogen smoke when on fire; copper core XLPE insulated low-smoke halogen-free flame retardant control cable features high temperature resistance, low smoke and halogen-free flame retardant performance, easier to pass fire inspection, ideal for high-end overseas projects.
China Qiancheng keeps various specifications of copper core XLPE insulated low-smoke halogen-free flame retardant control cables in stock, factory direct sales accept bulk orders, free samples are available, and customized specifications are supported.
