Copper PVC Flexible Control Cable

Basic Product Model: KVVR

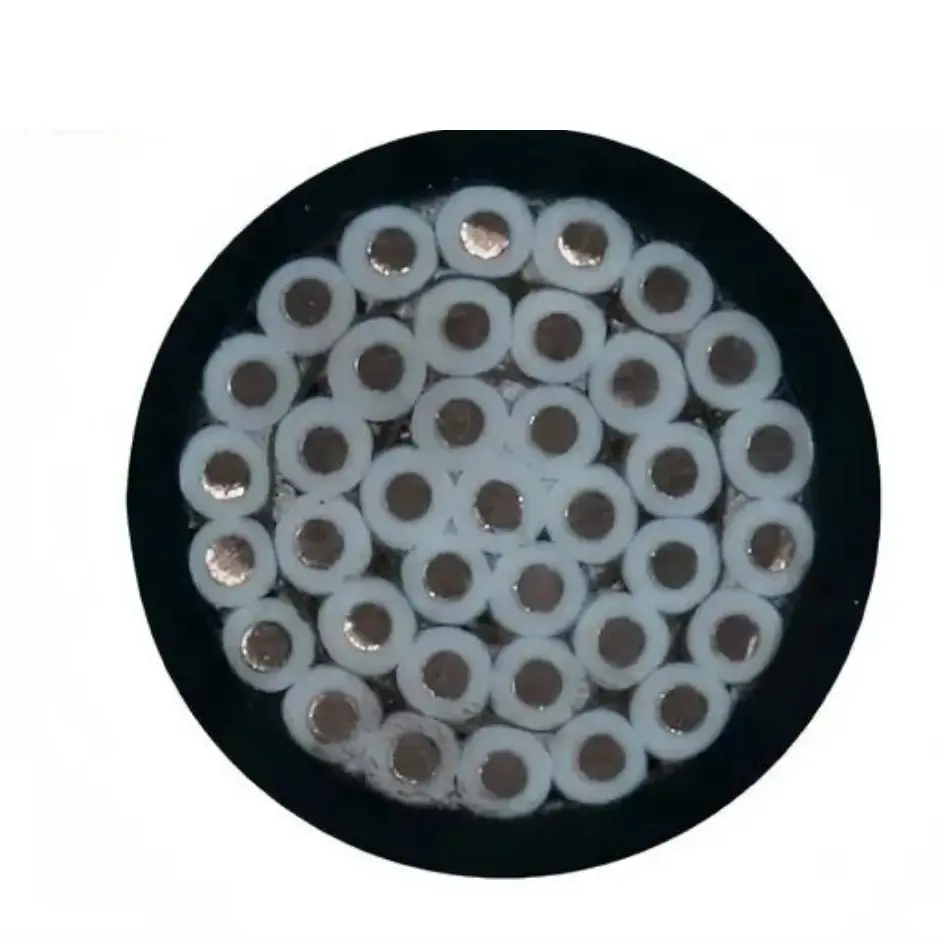

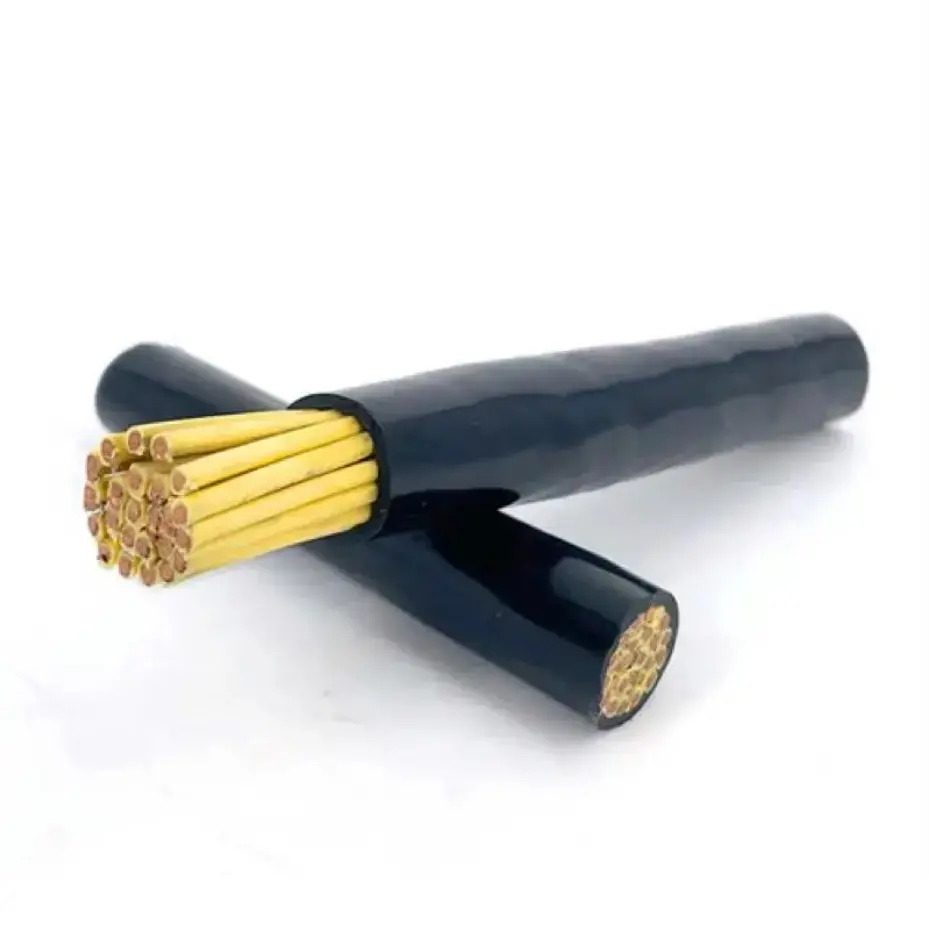

Copper PVC Flexible Control Cable is a 450/750V control cable built around stranded copper conductors and PVC insulation and sheath. The flexible conductor construction allows the cable to follow tighter routing paths than a solid or rigid conductor, which is useful when control wiring has to pass through cabinets, trays, conduits or equipment connections. Its primary role is the transmission of control, measurement and monitoring signals within low-voltage electrical systems.

For automatic-control and auxiliary circuits, the conductor cross-section, number of cores, installation method and electrical resistance are important when specifying the cable. The available conductor sizes cover common control-wiring requirements, while different core configurations can be selected according to the circuit design.

Product Technical Parameter Table

Construction and Electrical Characteristics

Stranded Copper Conductor

The conductor consists of multiple fine copper strands rather than a single solid conductor. This construction provides the mechanical flexibility needed for routing control wiring around terminals, cabinet components and cable management systems. Conductor resistance at 20℃ is provided in the specification table for both non-plated and plated metal conditions.

PVC Insulation and Sheath

PVC is used as the primary insulating material around the conductor, with the cable construction providing electrical separation between individual conductors and the surrounding environment. The listed insulation thickness varies with conductor cross-section, allowing the specification to be checked against the intended circuit requirements.

450/750V Control Wiring

The 450/750V rating places this cable within a common low-voltage control and auxiliary wiring range. It is intended for electrical control and monitoring circuits rather than as a substitute for power cables selected for higher-voltage transmission. Final selection should follow the voltage, current, installation and equipment requirements of the complete circuit.

Application Scenarios

Copper PVC Flexible Control Cable is used in control and auxiliary circuits where the wiring route includes cabinets, equipment connections or other locations requiring easier handling during installation.

1. Power Industry: Control cabinets in power distribution rooms, generator-set control wiring and secondary signal circuits for substations.

2. Industrial Automation: Internal control wiring for production-line equipment, machine tools, fans, water pumps and drying equipment.

3. Building Supporting Projects: Central air-conditioning control modules, elevator control cabinets, underground machine rooms and building lighting linkage systems.

4. Metallurgical Manufacturing: Automatic operation consoles and signal connections for production equipment in industrial workshops.

5. General Supporting Projects: Electrical control circuits for fire-protection linkage equipment and environmental-protection sewage-treatment equipment.

Practical Wiring Issues Addressed

1. Routing Through Confined Spaces

Control cabinets and equipment often contain multiple terminals, components and cable routes within a limited space. The stranded conductor makes the cable easier to route and terminate where a rigid conductor would be less convenient to handle.

2. Matching Conductor Size to the Circuit

Control circuits do not all require the same conductor cross-section. The available sizes from 0.5mm² to 6mm² allow the cable specification to be matched with circuit requirements, installation conditions and the electrical characteristics of the connected equipment.

3. Managing Multi-Core Control Wiring

Using a multi-core cable can simplify the organization of related control and monitoring circuits. Core quantity should be determined from the number of required signals, spare circuits and the wiring arrangement of the equipment.

4. Maintaining Consistent Electrical Parameters

Conductor resistance and insulation thickness are measurable parameters that can be checked against the specified cable construction. For project procurement, the required cross-section, core configuration and applicable technical documentation should be confirmed before production or shipment.

Manufacturing and Quality Verification

For control cable procurement, quality assessment should focus on traceable material specifications and measurable production parameters rather than appearance alone. Relevant checks can include conductor construction, conductor resistance, insulation dimensions and finished-cable inspection according to the applicable product requirements.

Qiancheng can provide product specifications and related technical information for project selection. For bulk or project orders, the required model, conductor cross-section, core quantity, cable length, packaging and documentation should be confirmed before order processing.

Specification Selection Guide

When selecting this type of control cable, several parameters should be considered together rather than choosing the conductor size independently.

1. Conductor Cross-section: Select according to the electrical load, circuit function and applicable wiring requirements.

2. Core Quantity: Determine the number of control, monitoring and auxiliary circuits that need to be carried by the cable.

3. Installation Method: Check whether the cable will be routed through a cabinet, tray, conduit or equipment connection and consider the required flexibility.

4. Electrical Parameters: Confirm rated voltage and allowable conductor resistance against the requirements of the connected control system.

5. Project Documentation: For engineering or export orders, confirm the required specification sheet, inspection records and other technical documents before shipment.

FAQ

1. What is the rated voltage of this Copper PVC Flexible Control Cable?

The rated voltage is 450/750V. The cable uses stranded copper conductors with PVC insulation and is intended for low-voltage control and auxiliary circuits.

2. What conductor sizes are available?

The specification table covers nominal cross-sections from 0.5mm² to 6mm². The actual selection should be based on the electrical requirements and installation conditions of the control circuit.

3. Can you provide complete technical specifications for project selection?

Yes. Technical information can be provided for the applicable conductor size and cable configuration, including conductor diameter, PVC insulation thickness and 20℃ DC conductor resistance.

4. Where is this cable commonly applied?

It can be used in power distribution control cabinets, industrial automation equipment, elevator control systems, central air-conditioning controls, metallurgical equipment and environmental-protection electrical control systems.

5. How should the cable be selected for a new control system?

Confirm the rated voltage, conductor cross-section, required core quantity, installation route and environmental conditions first. The cable specification can then be matched with the electrical and mechanical requirements of the system.

6. Can cable length and other specifications be customized?

Cable length and configuration requirements can be discussed according to the project. For non-standard orders, the required conductor size, core quantity, length, packaging and technical documentation should be confirmed before production.
